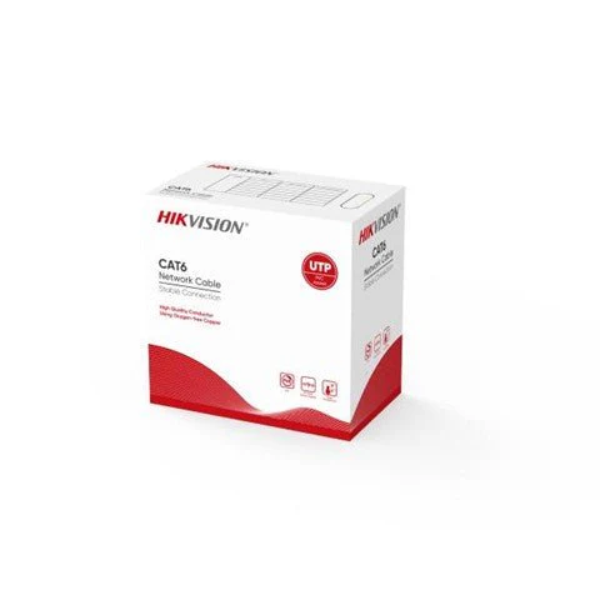

Hikvision 305m CAT6 Solid Copper UTP Network Cable Orange
R3,559.00
Hikvision 305m CAT6 Solid Copper UTP Network Cable Orange DS-1LN6-UU
This is a high-quality, 305-metre CAT6 UTP network cable from Hikvision, designed for stable and efficient data transmission – ideal for networking installations, CCTV/IP camera systems, PoE setups, and general structured cabling. Its solid copper core and robust PVC sheath ensure reliable performance and long-term durability, even in demanding environments. The bright orange outer jacket makes identification easy during installation or maintenance.
Full diameter 305 m CAT6 network cable
Core diameter: 0.565mm
Excellent transmission performance using solid copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance.
Core Color:
1: White/Blue & Blue
2: White/Orange & Orange
3: White/Green & Green
4: White/Brown & Brown
Packing: Wooden Tray & Carton
Carton Dimension: As requested
Packing Length: 305 ± 1.5 m
Rip-cord: Yes
Drain Wire: No
Sheath Physical Properties:
Before Aging: Tensile Strength ≥ 13.5 MPa, Elongation ≥ 150%
Aging Period: 100 °C × 24 h × 10 days
After Aging: Tensile Strength ≥ 12.5 MPa, Elongation ≥ 125%
Cold Bend (-20 ± 2 °C × 4 h) – 8 × Cable O.D., no visible cracks
Electrical Characteristics (20 °C):
Impedance (1.0–250.0 MHz): 100 Ω ± 15
Delay Skew (1.0–250.0 MHz): ≤ 45 ns/100 m
DC Resistance: Max 9.38 Ω/100 m
DC Resistance Unbalance: Max 5%
Conductor:
Material: Solid Bare Copper (99.95%)
Nominal O.D: 0.565 ± 0.005 mm
Insulation:
Material: HDPE
Diameter: 1.02 ± 0.05 mm
