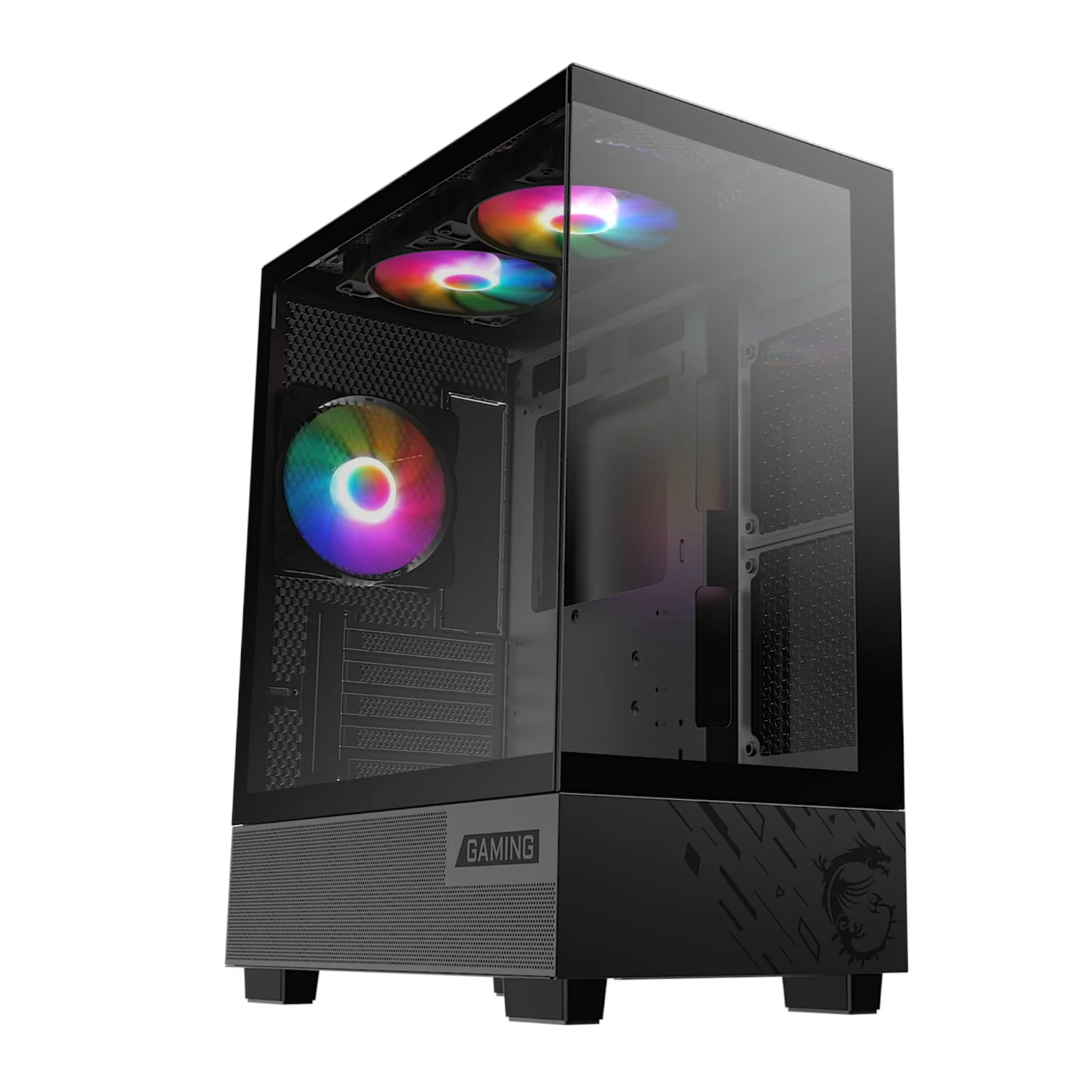

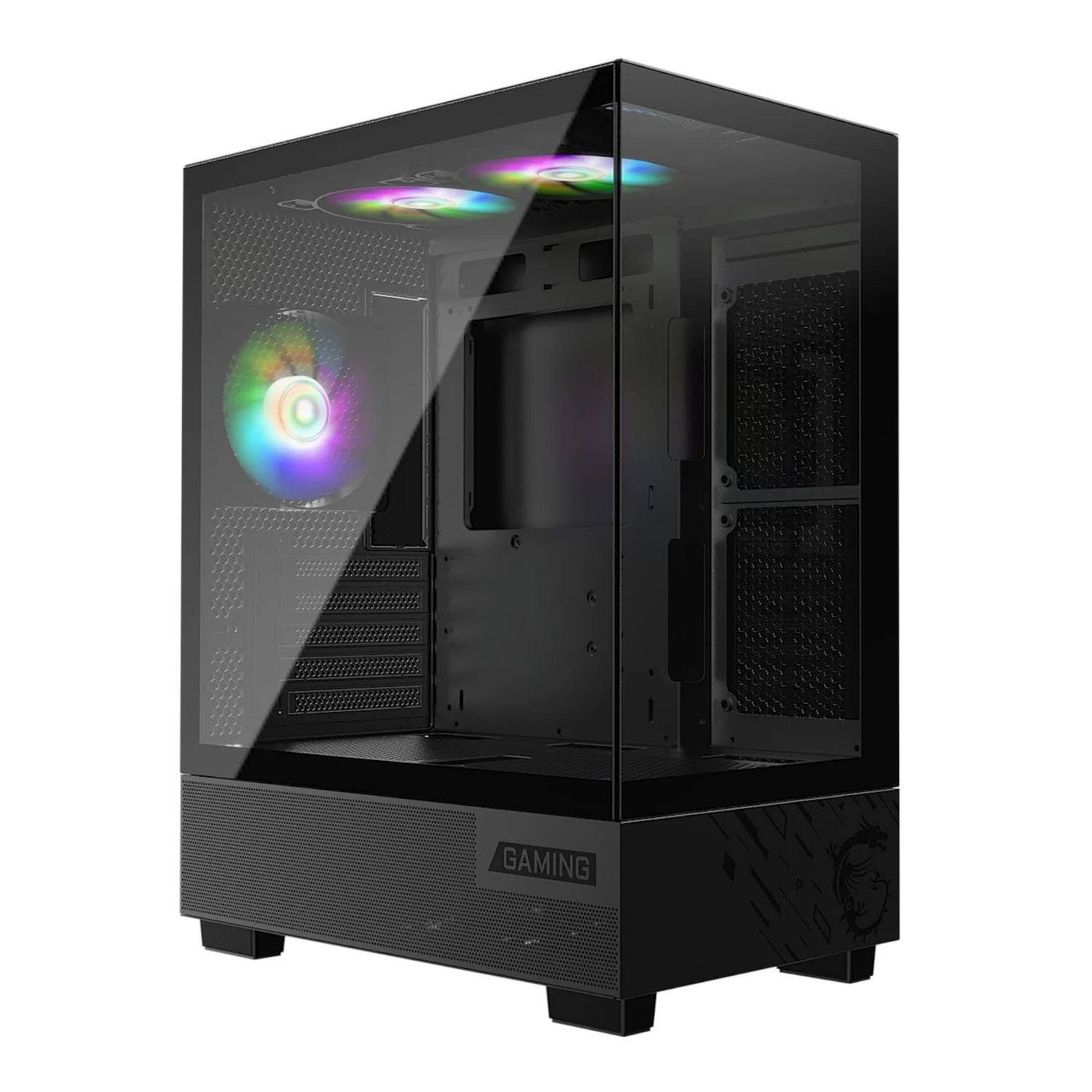

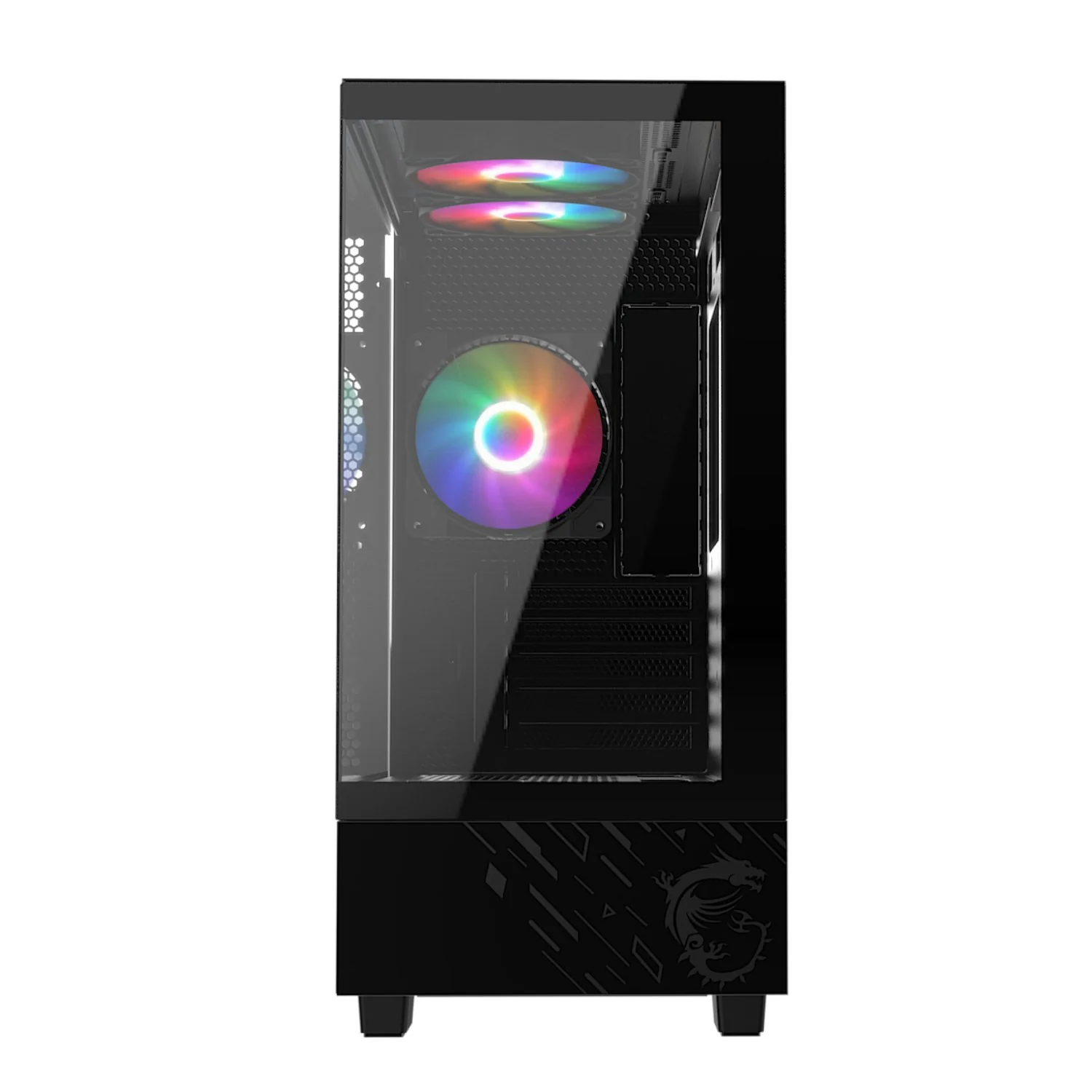

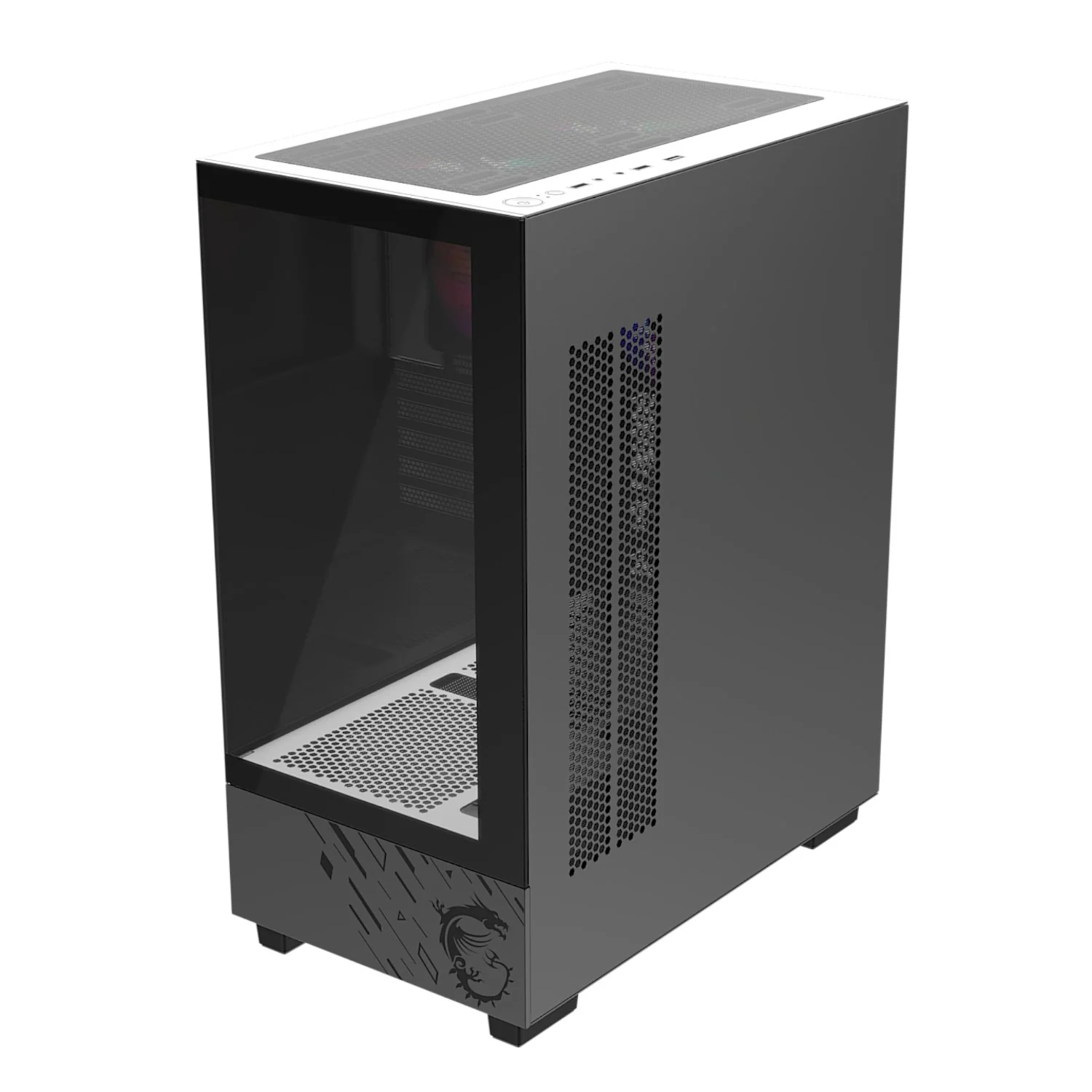

MSI MAG PANO M110A Micro-ATX Gaming Chassis – Black (PAG PANO M110A)
R689.00
The MSI MAG PANO M110A Micro-ATX Gaming Chassis (PAG PANO M110A) offers sleek panoramic styling, exceptional airflow, and compact desk efficiency. Features 3 pre-installed Auto-RGB fans, support for up to 7 system fans or a 240mm radiator, magnetic top dust filtering, 330mm GPU clearance, and 5 expansion slots.
- Form Factor & Support: Micro-ATX / Mini-ITX Mid Tower | 5 Expansion Slots
- Cooling & Airflow: 3x Pre-Installed 120mm Auto-RGB Fans | Supports Up to 7 Fans & 240mm Radiator
- Clearance: Max GPU Length: 330mm | Max CPU Cooler: 160mm | Max PSU: 160mm
- Maintenance & I/O: Top Magnetic Dust Filter | USB 5Gbps Type-A & Audio Connections
- Dimensions & Warranty: 36.9 x 21.0 x 44.8 cm | 6.28kg Weight | 24 Months Warranty
Build a high-performance, space-saving rig with the MSI MAG PANO M110A Micro-ATX Gaming Chassis. Engineered with a panoramic view and optimized airflow design, this compact mid-tower case comes pre-installed with three Auto-RGB system fans and supports up to seven 120mm fans or a 240mm top-mounted liquid cooling radiator. Featuring a tool-free magnetic top dust filter, wide component clearance for modern GPUs, and five expansion slots, the PANO M110A balances sleek aesthetics with efficient thermal management.
Key Features
- Panoramic Clear View: Showcases internal components and vibrant RGB lighting with a sleek side panel design.
- Pre-Installed Auto-RGB Fans: Includes 3 pre-installed Auto-RGB system fans (2x Top, 1x Rear) for immediate airflow and dynamic lighting out of the box.
- Optimized Airflow & Cooling: Supports up to 7 system fans across top, rear, side, and bottom mounts, as well as top 240mm radiator installation.
- Convenient Magnetic Dust Filter: Top-mounted magnetic filter enables effortless removal, quick cleaning, and effective prevention of dust buildup.
- Generous Component Clearance: Accommodates graphics cards up to 330mm in length, CPU coolers up to 160mm, and standard ATX power supplies up to 160mm.
- Compact & Expandable: Compact Micro-ATX form factor featuring 5 expansion slots for added flexibility and future system upgrades.
Technical Specifications
| Brand | MSI |
| Colour | Black |
| Case Form Factor | Micro-ATX Mid Tower |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Pre-Installed Fans | 3x Auto-RGB Fans (2x 120mm Top, 1x 120mm Rear) |
| Total Fan Support | Up to 7x 120mm (Top: 2x 120/140mm, Side: 2x 120mm, Bottom: 2x 120mm, Rear: 1x 120mm) |
| Radiator Support | Top: 120 / 240mm | Rear: 120mm |
| Drive Bays | 1x 2.5″ SSD, 2x 3.5″ HDD |
| Expansion Slots | 5 Slots |

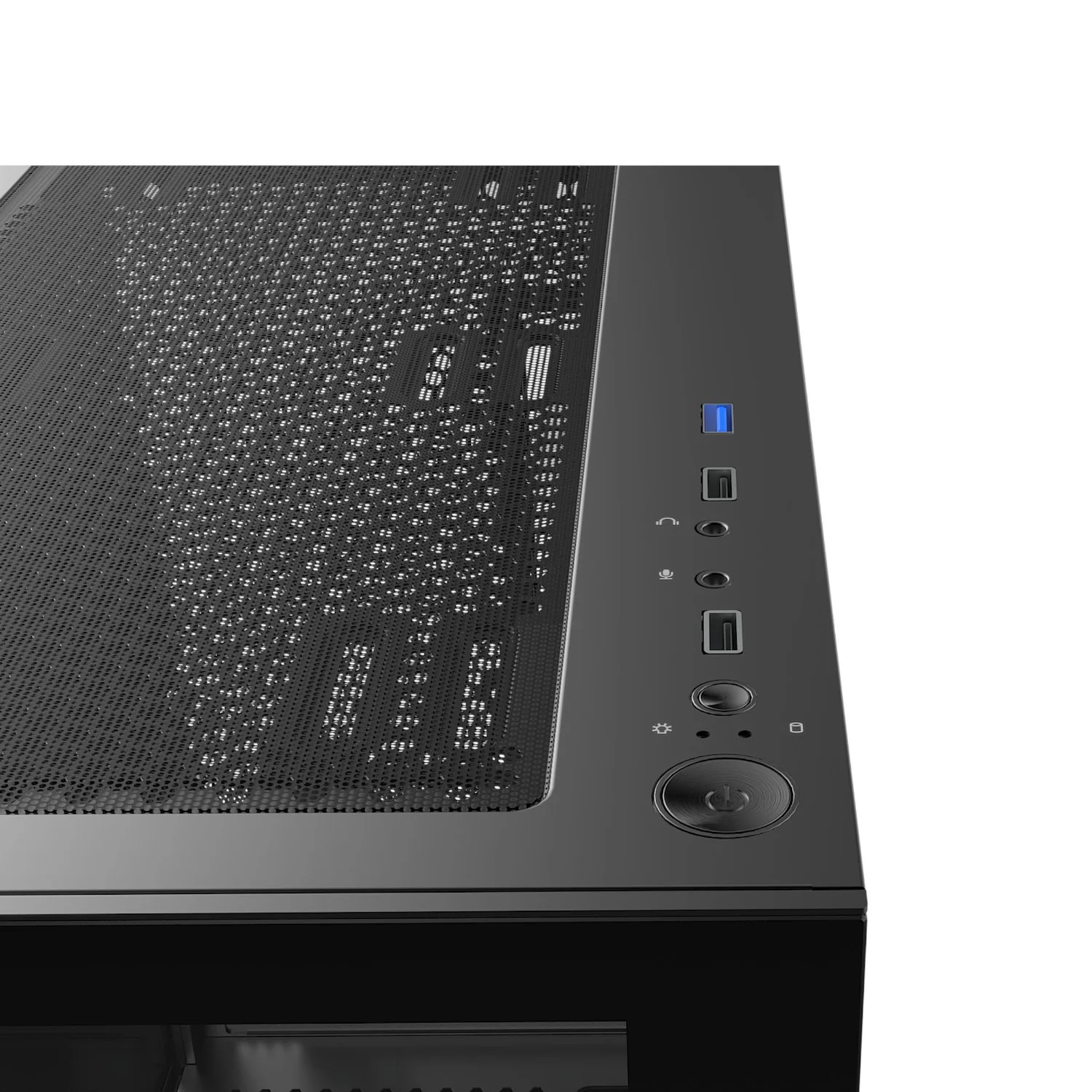

| Front I/O Ports | 1x USB 5Gbps (Type-A), 1x USB (Type-A), 1x Audio-Out / Mic-In, Power & Reset Buttons |
| Max GPU Length | 330 mm |
| Max CPU Cooler Height | 160 mm |
| Max PSU Length | 160 mm (Standard ATX) |
| Dust Filters | Top Magnetic Dust Filter |
| Product Dimensions | 36.9 cm (D) x 21.0 cm (W) x 44.8 cm (H) |
| Gross Weight | 6.28 kg |
| EAN Number | 4711377317269 |
| Part Number / SKU | PAG PANO M110A |
| Warranty | 24 Months (2-Year Warranty) |
What’s in the Box
- MSI MAG PANO M110A Micro-ATX Gaming Chassis – Black
- 3x 120mm Pre-Installed Auto-RGB System Fans
- Top Magnetic Dust Filter
- Accessory & Screw Pack
- User Installation Guide
