Technical Specification
| Networking Specifications | |
| Interface: | Ethernet/Wi-Fi |
| Networking Form Factor: | External |
| Uplink Port Type: | 1 x 10GbE |
| Total Number of Ports: | 1 |
| Switching Protocol: | Ethernet |
| Data Link Protocol Supports: | 10 Gbps 1 Gbps 2.5 Gbps 5 Gbps |
| Device Location: | External |
| Wireless Frequency: | 6 GHz up to 5.8 Gbps 5 GHz up to 8.6 Gbps 2.4 GHz up to 688 Mbps |
| Wi-Fi Band Frequency: | 2.4/5 GHz/6 GHz |
| Max. Range Indoors: | 160 m^2 |
| Status Indicator: | Activity Status |
| Encryption Algorithm: | TLS |
| Networking Compliant Standards: | IEEE 802.11n IEEE 802.11ac IEEE 802.11r IEEE 802.11k IEEE 802.11v IEEE 802.11ax IEEE 802.11be |
| Networking Features: | 2×2 MIMO 4×4 MIMO Band Steering 1 Port PoE++ Mesh Technology Hotspot 2.0 |
| Antenna: | Internal |
| Certifications: | CE, FCC, IC |
| Amplification: | 6 dBi |
| Radio Output Power: | 29 dBm |
| Interface Provided | |
| LAN: | 1 (RJ-45) |
| Power | |
| Power over Ethernet: | DC 42.5-57 V |
| Power Consumption Operational: | 29 W |
| Miscellaneous | |
| External Color: | White |

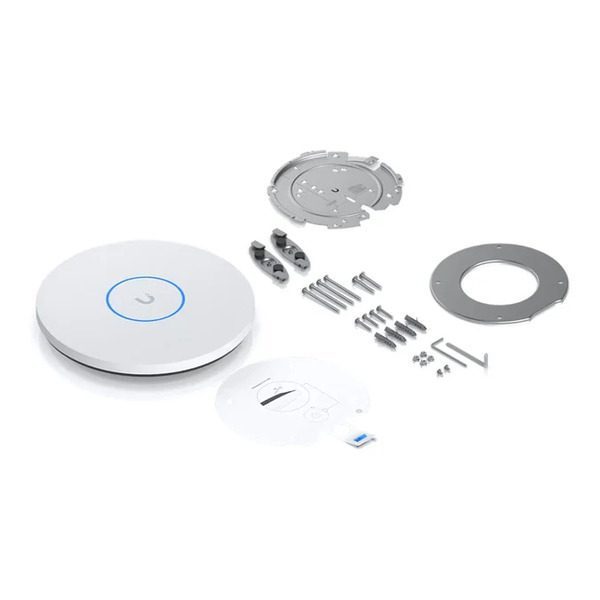

| Included Accessories: | Quick Start Guide Mount kit |
| Built-in Devices: | LED Indicator Reset Button |
| Dimensions&Weight Device | |
| Depth (mm): | 32.5 mm |
| Height (mm): | 215 mm |
| Width (mm): | 215 mm |
| Nominal Weight: | 0.8 kg |
| Environment | |
| Maximum Operating Ambient Temperature: | 40 °C |
| Maximum Operating Humidity: | 95 % |
| Minimum Operating Ambient Temperature: | -30 °C |
| Minimum Operating Humidity: | 5 % |
Warranty and Logistic
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 12 month(s) |
| Warranty Term Notes: | 24 months – for EU |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Length (mm): | 251 mm |
| Pack Width (mm): | 80.5 mm |
| Pack Height (mm): | 259 mm |
| Pack Weight Brutto (kg): | 1.5518 kg |
| Pack Weight Netto (kg): | 0.8 kg |
| Pieces in pack: | 1 |
| Box Length (mm): | 561 mm |
| Box Width (mm): | 314 mm |
| Box Height (mm): | 326 mm |
| Box Weight Brutto (kg): | 9.311 kg |
| Retail Packaging Net Weight Carton: | 0 kg |
| Retail Packaging Net Weight Plastic: | 0 kg |
| Packs in Box: | 6 |
| Package Type: | Retail |
| EAN Code: | 810084698341 |
