APC Smart-UPS SRT 10000VA

APC Smart-UPS On-Line 10kVA / 10kW Tower UPS

The APC Smart-UPS On-Line 10kVA / 10kW is a high-capacity double-conversion UPS designed to deliver continuous, clean power for mission-critical environments. Built for demanding IT infrastructure, industrial applications, and enterprise systems, this model ensures maximum uptime and protection against power interruptions, voltage instability, and electrical disturbances.

Using true online double-conversion technology, the UPS isolates connected equipment from incoming power irregularities by converting AC to DC and back to AC. This process guarantees a stable 230V output, making it suitable for sensitive servers, data centre equipment, and high-performance systems.

Performance & Power Capacity

• Output Capacity: 10kVA / 10kW
• Input Voltage: 230V
• Output Voltage: 230V
• UPS Topology: Double-conversion (Online)
• Typical Runtime at Full Load: Approx. 3.8 minutes

Connectivity & Management

• Interface Ports: Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, USB
• SmartSlot expansion for optional management cards
• Extended runtime model support

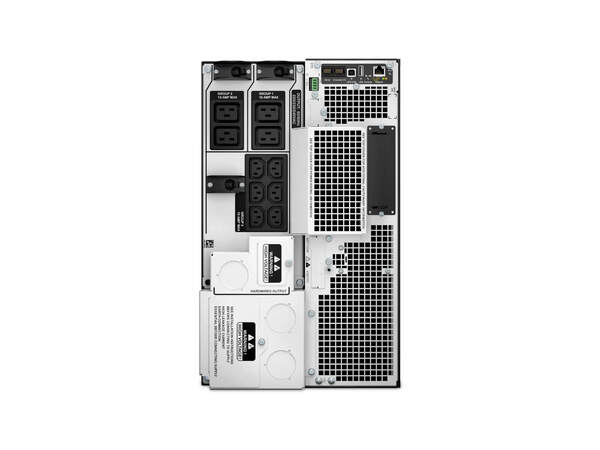

Output Connections

• AC Outlet Types: C13 and C19 couplers
• Total Outlets: 10
• Power Connection: Terminal input

Battery Specifications

• Battery Technology: Sealed Lead Acid (VRLA)
• Battery Capacity: 1805 VAh

Physical & Environmental

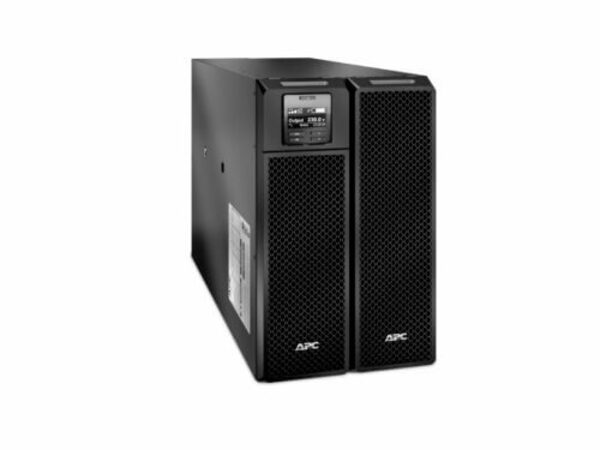

• Form Factor: Convertible Rackmount / Tower
• Protection Rating: IP20
• Colour: Black
• Dimensions (W x D x H): 263 x 715 x 432 mm

What’s Included

• Software CD
• Documentation CD
• Installation Guide
• Temperature Probe
• USB Cable
• Warranty Card

Recommended for: Data centres, enterprise servers, network infrastructure, industrial systems, and applications requiring high-capacity continuous power protection.
